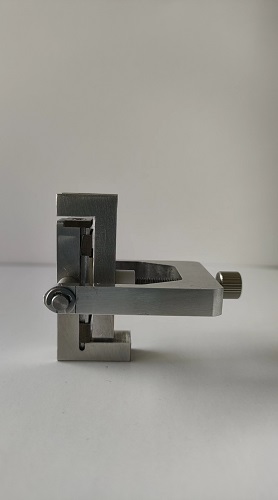

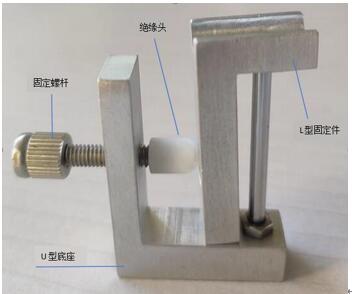

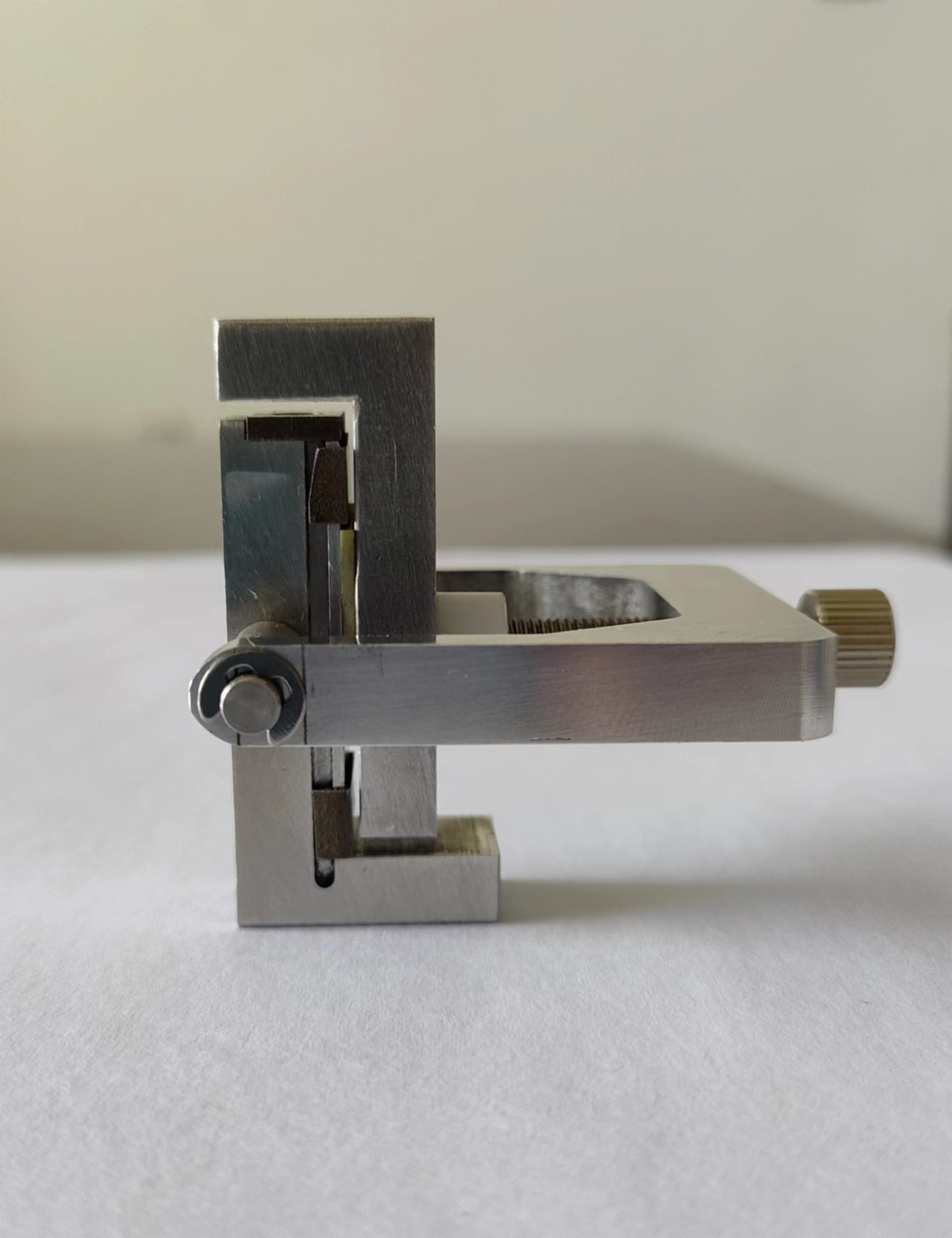

TSZ lateral/longitudinal sensor testing fixture

TSZ lateral/longitudinal sensor testing fixture

Main technical specifications of square samples with longitudinal and transverse fixtures:

Sample size range: h>11mm, T<40mm, R<20mm;

Measurement accuracy: Soil 1%

Test electrode: silver plated transverse end of stainless steel

Base electrode: PTFE insulation material

ZST-02 tangential measuring fixture

Main technical parameters of tangential fixture:

1. Scope of application:

Thickness greater than 1mm, length: 15mm, width: 5mm

D15: Measurement uncertainty error range: soil 10% soil 1 to 3pCN.

Main technical parameters of the circular tube fixture sample:

1. Pipe diameter: 3-5mm, thickness: 1-2mm

D15: Measurement uncertainty error range: soil 10% soil 1 to 3pCN.

Material: Alloy material
